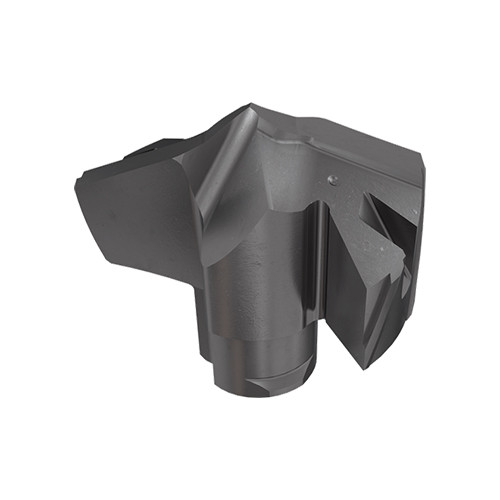

QCP 0406-2M IC908
Exchangeable double margin & self-centering drilling heads for DCN drills, for machining ISO P and ISO K materials with high surface finish results.
Price: Log in For Price

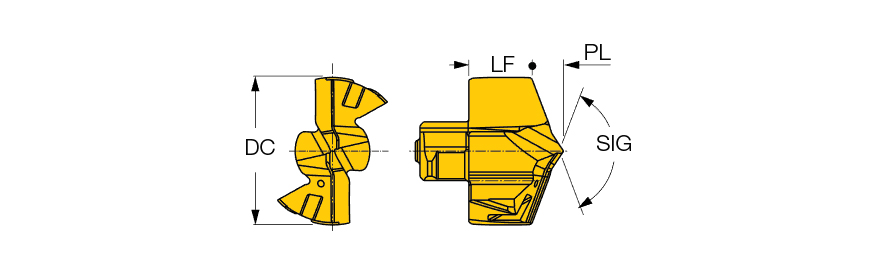

| Cutting Diameter (DC) | 0.406″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.08464″ |
| Grade | IC908 | Point Angle (SIG) | 136 Degrees |
| Protruding Length (LPR) | 0.267″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 10.0 | Body Material | Carbide |
| Functional Length (LF) | 0.183″ | Unit | I |
Product Features
| Family Description | Exchangeable double margin & self-centering drilling heads for DCN drills, for machining ISO P and ISO K materials with high surface finish results. | COO | Israel |
| Remarks | Provides high surface finish of up to 64 microinches Ra hole cylindricity and straightness of up to.002 |
Shipping Info
Weight per item
0.0287
