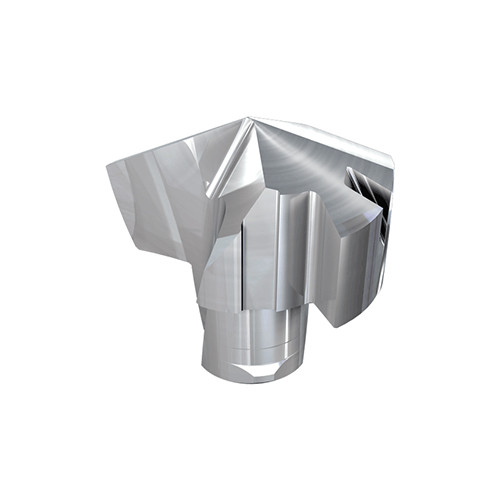

ICN 0622 IC08
Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of .004″
Price: Log in For Price

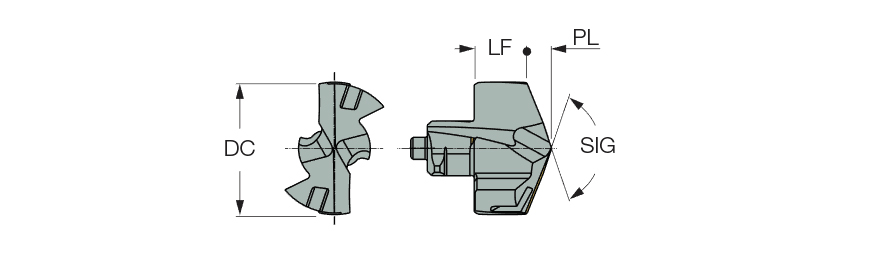

| Cutting Diameter (DC) | 0.622″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Insert Thickness (S) | 0.344″ |
| Application | | Chamfering | Drilling | | Point Length (PL) | 0.09527″ |
| Grade | IC08 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | Uncoated |
| Insert Seat Size Code (SSC) | 15.0 | Body Material | Carbide |
| Functional Length (LF) | 0.248″ | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of .004″ | COO | Israel |
| Remarks | The drill is manufactured with a sharp cutting edge and polished flutes |
Shipping Info
Weight per item
0.0331
