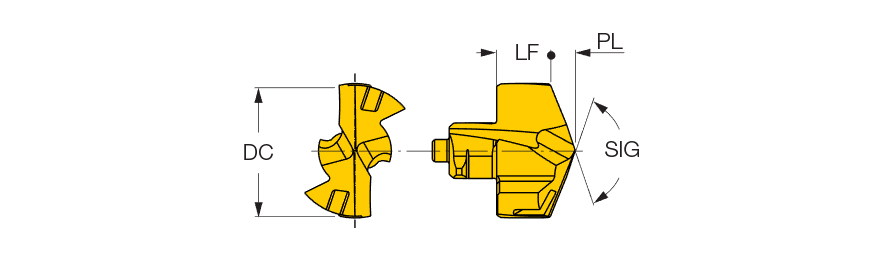

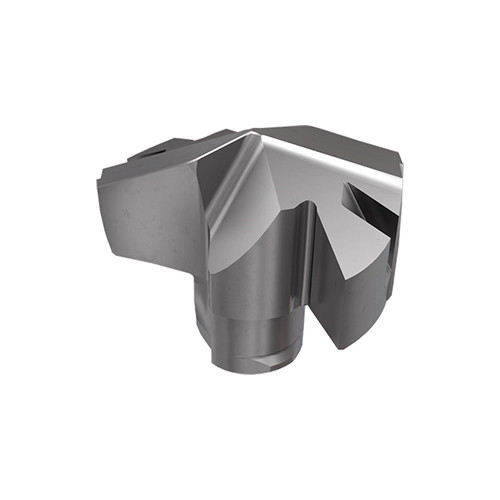

ICM 1011 IC908
| Cutting Diameter (DC) | 1.011″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Insert Thickness (S) | 0.571″ |
| Grade | IC908 | Point Length (PL) | 0.1559″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.571″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 25.0 | Body Material | Carbide |
| Functional Length (LF) | 0.415″ | Unit | I |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO M and ISO S materials. The drill head features a T-land on the cutting edge, available in increments of .004″. | ||
| COO | Israel |
Shipping Info
Weight per item
0.1301
