ICK 0492 IC908

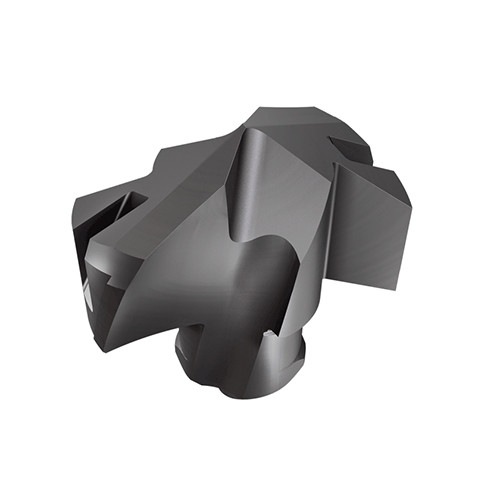

Exchangeable drilling heads for DCN drills, for machining ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004″.
Price: Log in For Price

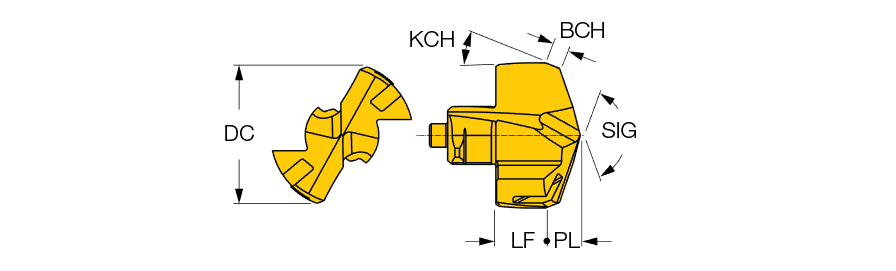

| Cutting Diameter (DC) | 0.492″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.276″ |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.11417″ |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 12.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.161″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | I |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004″. | ||
| COO | Israel |
Shipping Info
Weight per item
0.0243
