PENTA 34F239-0.15-22L IC908

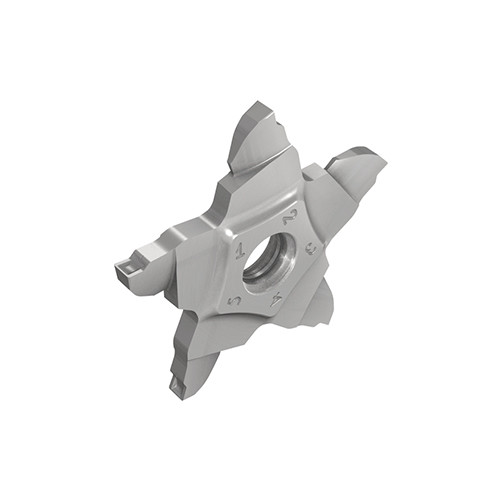

Pentagonal inserts for face grooving and recessing up to .197″ depth of cut at a minimum .866″ diameter.
Price: Log in For Price

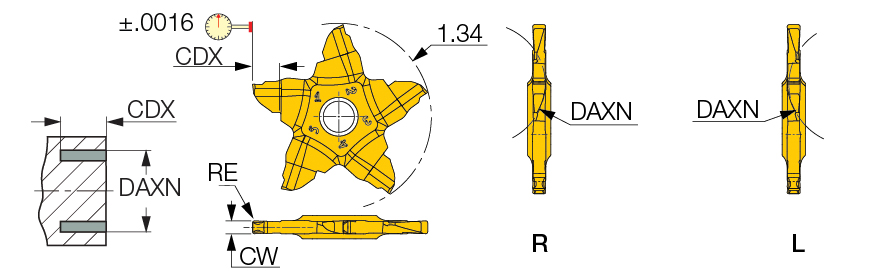

| Cutting Width (CW) | 0.094″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.87″ |
| Corner Radius (RE) | 0.0059″ | Max. Face Grooving Feed (ffg(max)) | 0.0047 ″/rev |
| Cutting Depth Maximum (CDX) | 0.197″ | Min. Face Grooving Feed (ffg(min)) | 0.0031 ″/rev |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Grade | IC908 | Body Material | Carbide |
| Application | | Face Grooving | | Unit | I |
| Tool Type | Face Turn-Groove Inserts |
Product Features
| Family Description | Pentagonal inserts for face grooving and recessing up to .197″ depth of cut at a minimum .866″ diameter. | FamilyName | PENTA 34F-R/L |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0524
Name
Face Groove/Turn Indexable Inserts
FamilyName
PENTA 34F-R/L
BrandName
Iscar
