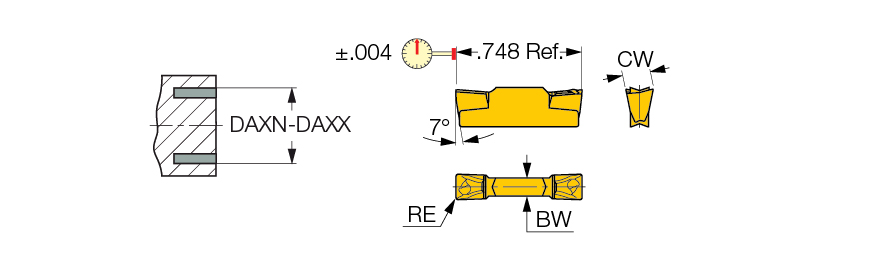

| Cutting Width (CW) | 0.236″ | Min D.O.C. | 0.016″ |
| Insert Length (INSL) | 0.748″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.82″ |
| Corner Radius (RE) | 0.016″ | Max. Face Grooving Feed (ffg(max)) | 0.011 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0047 ″/rev |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min. Face Turning Feed (fft(min)) | 0.0059 ″/rev |
| Grade | IC20 | Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | | Coating | Uncoated |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.118″ | Unit | I |
Product Features
| Family Description | Utility double-ended face machining inserts. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | HFPR/L |
Shipping Info
Weight per item
0.0170
Name

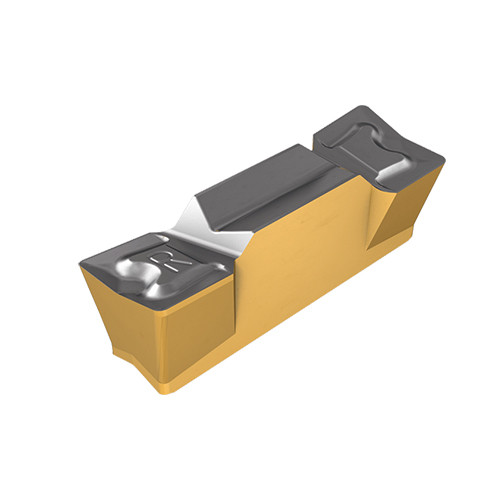

Face Groove/Turn Indexable Inserts
FamilyName
HFPR/L
BrandName
Iscar
