HGPL 6005Y IC908

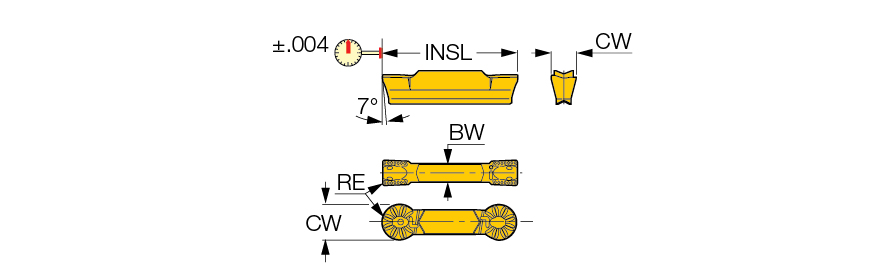

| Cutting Width (CW) | 0.236″ | Axial Groove Outside Diameter Maximum (DAXX) | 16.14″ |
| Insert Length (INSL) | 0.748″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.86″ |
| Corner Radius (RE) | 0.02″ | Max. Face Grooving Feed (ffg(max)) | 0.011 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0047 ″/rev |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min. Face Turning Feed (fft(min)) | 0.0094 ″/rev |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | | Coating | TiAlN |
| Tool Type | Parting & Grooving Inserts | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.142″ | Unit | I |
| Min D.O.C. | 0.024″ |
Product Features
| Family Description | Utility double-ended inserts, for face machining. | FamilyName | HGPL |
| Remarks | No depth penetration limit | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0174
Name
Face Groove/Turn Indexable Inserts
FamilyName
HGPL
BrandName
Iscar
