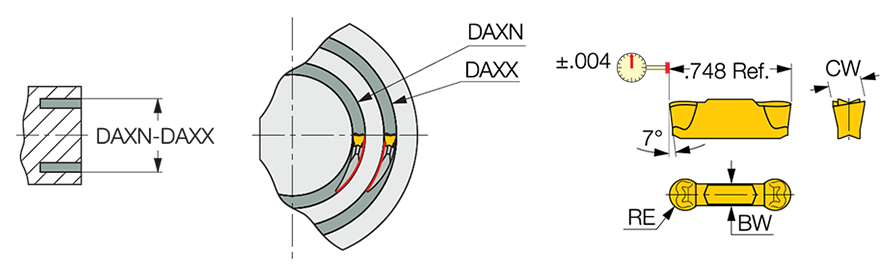

| Cutting Width (CW) | 0.157″ | Axial Groove Outside Diameter Maximum (DAXX) | 2.9″ |
| Insert Length (INSL) | 0.748″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.95″ |
| Corner Radius (RE) | 0.0787″ | Max. Face Grooving Feed (ffg(max)) | 0.0094 ″/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0039 ″/rev |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min. Face Turning Feed (fft(min)) | 0.0059 ″/rev |
| Grade | IC830 | Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | | Coating | AlTiN+TiN |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Unit | I |
| Min D.O.C. | 0″ |
Product Features
| Family Description | Utility double-ended full radius face machining inserts | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | HFPR/L (full radius) |
Shipping Info
Weight per item
0.0112
Name

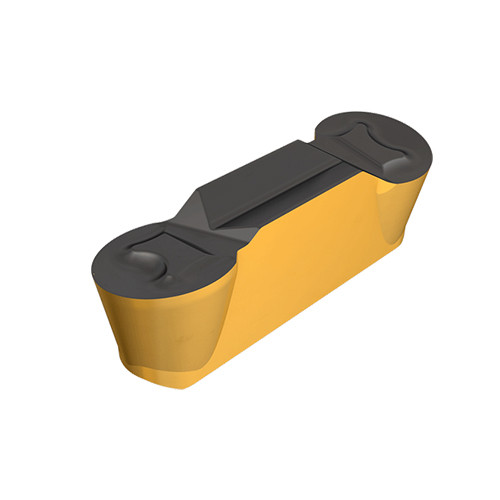

Face Groove/Turn Indexable Inserts
FamilyName
HFPR/L (full radius)
BrandName
Iscar
