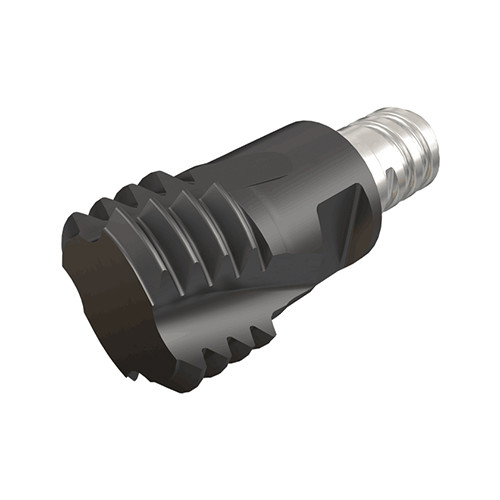

MT20F15 14W-MMTT10 IC908
Carbide milling heads with a threaded (MULTI-MASTER) connection for internal and external 55° BSW thread profile.
Price: Log in For Price

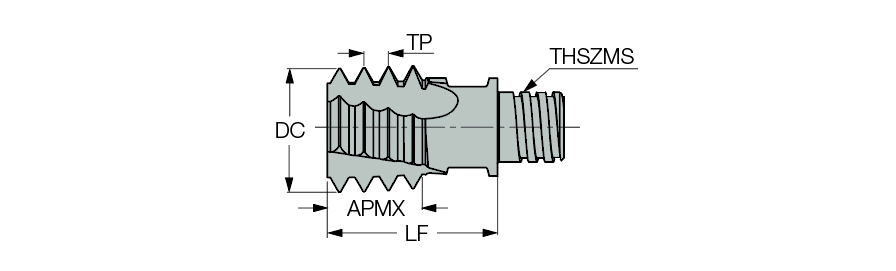

| Thread Standard | BSP |THFT | | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 14 | Tool Type | Solid carbide thread mills |
| Thread Diameter Size (TDZ) | G3/4-7/8 | Functional Length (LF) | 0.827″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.787″ | Overall Length (OAL) | 1.289″ |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Coating | TiAlN | Thread Size | G3/4-7/8 - 14 |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | WH55 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | I |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal and external 55° BSW thread profile. | COO | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Weight per item
0.1940
