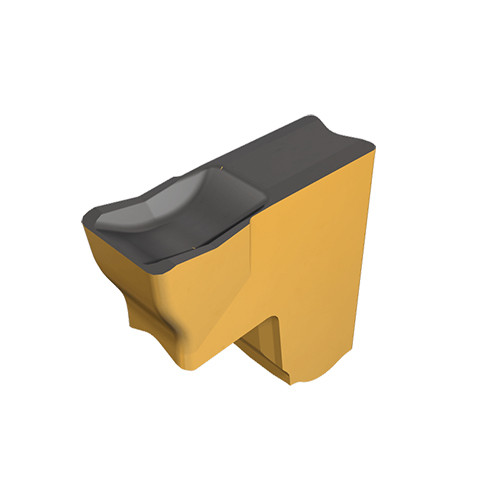

TAG N7W IC808

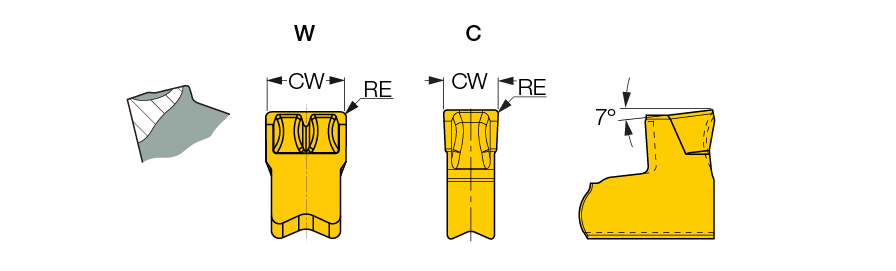

| Cutting Width (CW) | 0.276″ | Max. Grooving Feed (fg(max)) | 0.0157 ″/rev |
| Corner Radius (RE) | 0.0197″ | Min. Grooving Feed (fg(min)) | 0.0071 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ | Chip Breaker Type | W |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00314″ |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | Y Axis Parting & grooving | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | FamilyName | TAG N-C/W/M |
| Remarks | The feed values for grade IC20 should be decreased by 50%. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0176
Name
Parting Off Indexable Inserts
FamilyName
TAG N-C/W/M
BrandName
Iscar
