TAG N4J IC830
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
Price: Log in For Price

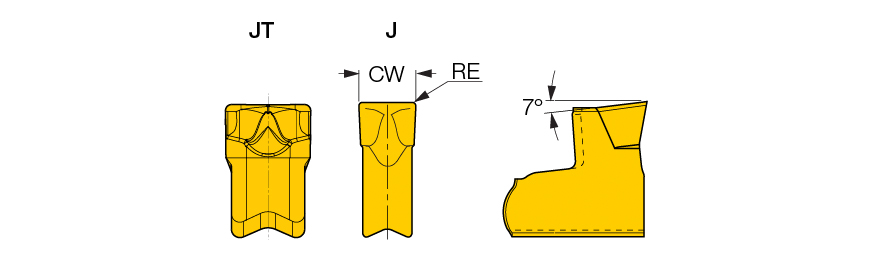

| Cutting Width (CW) | 0.157″ | Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Corner Radius (RE) | 0.0094″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Insert Rake Angle (GAN) | 5 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC830 | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | FamilyName | TAG N-J/JS/JT |
| Remarks | JT chipformer has the basic positive configuration of the J-type and a reinforced negative front edge; most suitable for soft materials at low-to-medium feeds. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0068
Name
Parting Off Indexable Inserts
FamilyName
TAG N-J/JS/JT
BrandName
Iscar
