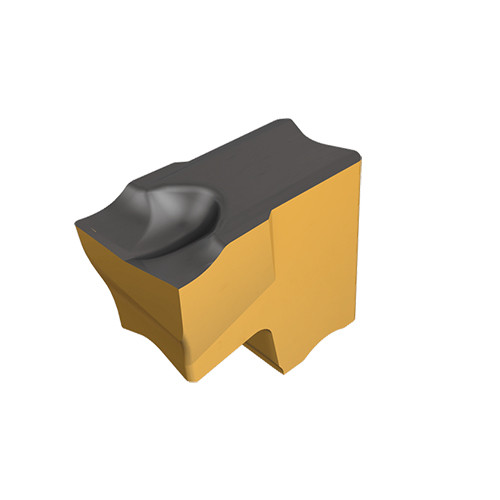

TAG L4J-4D IC808
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
Price: Log in For Price

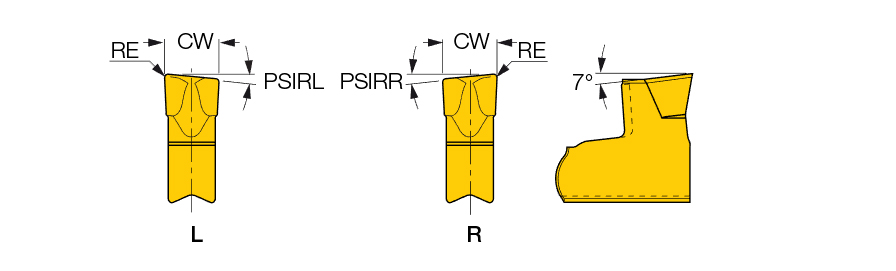

| Cutting Width (CW) | 0.158″ | Max. Grooving Feed (fg(max)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0094″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC808 | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | TAG R/L-J/JS |
Shipping Info
Weight per item
0.0071
Name
Parting Off Indexable Inserts
FamilyName
TAG R/L-J/JS
BrandName
Iscar
