| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

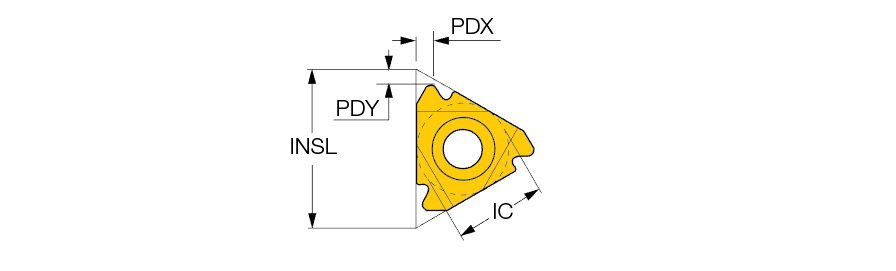

| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.083″ | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0382″ | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | API |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0811″ |
| Application | | External Threading | |
Product Features
| Family Description | External API - oil thread, round profile (API Spec 7-2) laydown threading inserts. | FamilyName | ER/L-API |
| Remarks | For Insert Identification System, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0538
Name

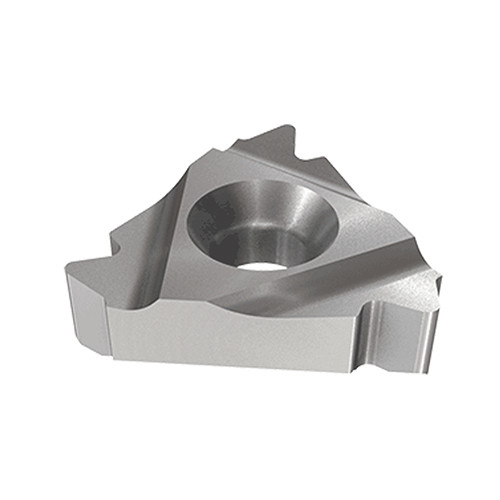

Laydown Threading Indexable Inserts
FamilyName
ER/L-API
BrandName
Iscar
