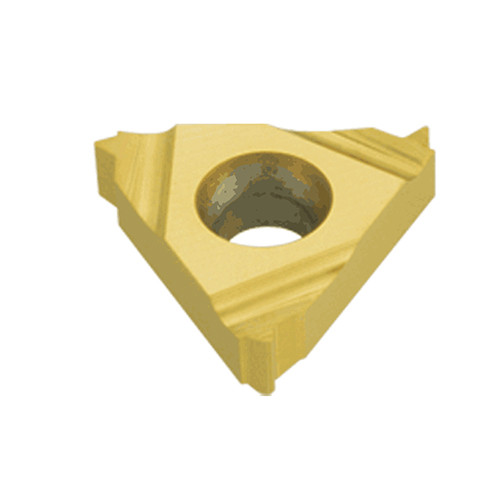

16IL 14 NPTF IC908
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

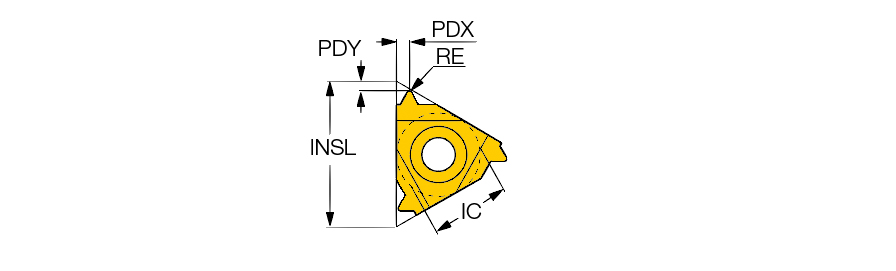

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 14 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0027″ | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | NPTF60 |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0354″ |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal NPTF (National Pipe Threads-Dry Seal) (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976 full profile laydown threading inserts, for steam, gas and water pipes. | FamilyName | IR/L-NPTF |
| Remarks | For Insert Identification System, click on More Info (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0159
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-NPTF
BrandName
Iscar
