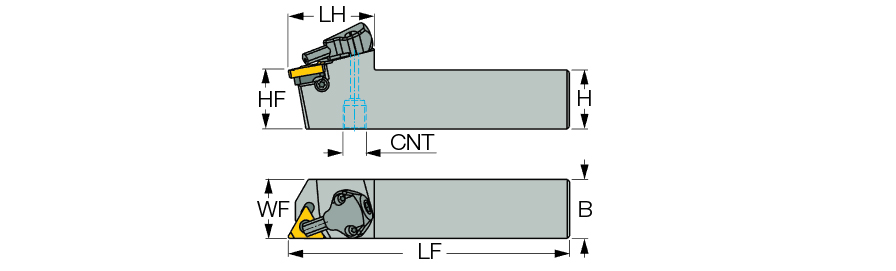

| Head Length (LH) | 1.453″ | Application | | Ext. Grooving | External Threading | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External threading tools with coolant channels. | FamilyName | SER/L-JHP |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8254
Name

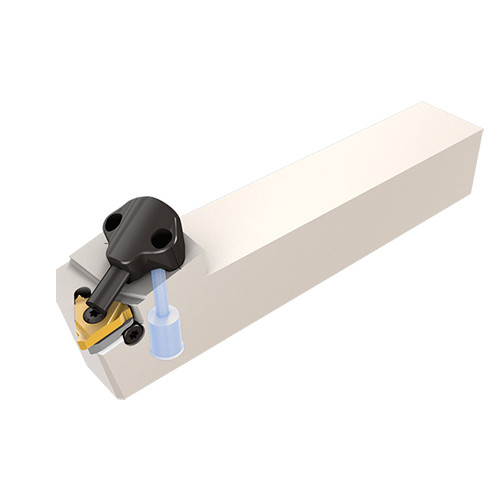

Laydown Threading Indexable Holders
FamilyName
SER/L-JHP
BrandName
Iscar
