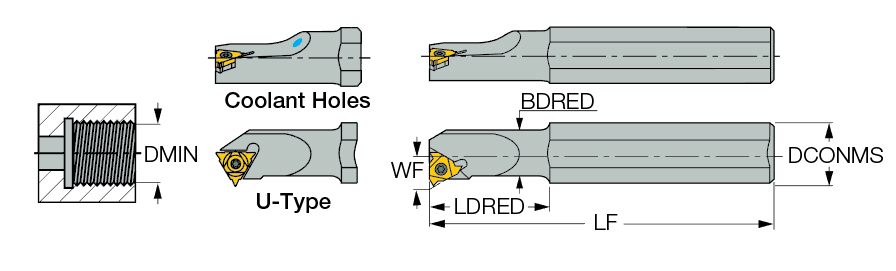

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Int. Grooving | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 0.64″ | Body Material | Steel |
| Head Length (LH) | 1.26″ | Tool Type | Internal Indexable Threading Tools |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
Product Features
| Family Description | Internal threading bars | FamilyName | SIR/L |
| Remarks | B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AL 16-0 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4696
Name

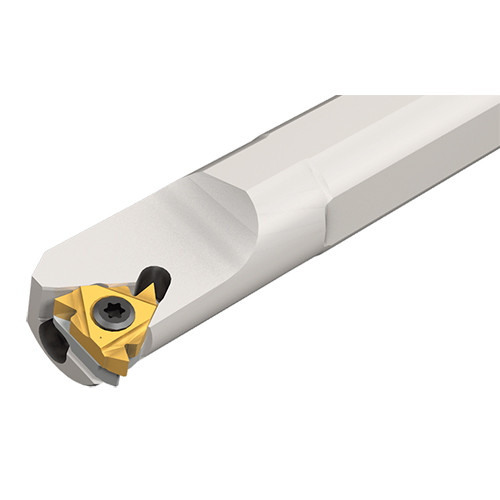

Laydown Threading Indexable Holders
FamilyName
SIR/L
BrandName
Iscar
