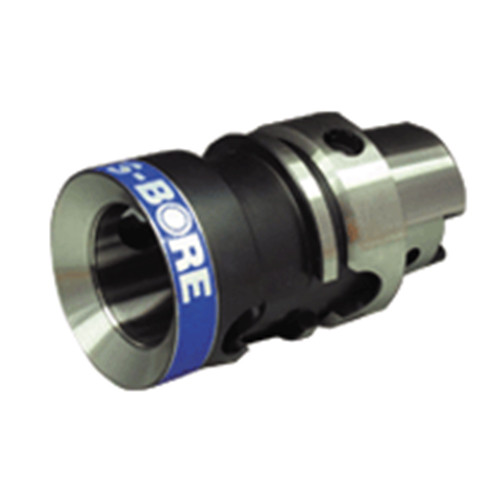

HSK A63 MB50X120

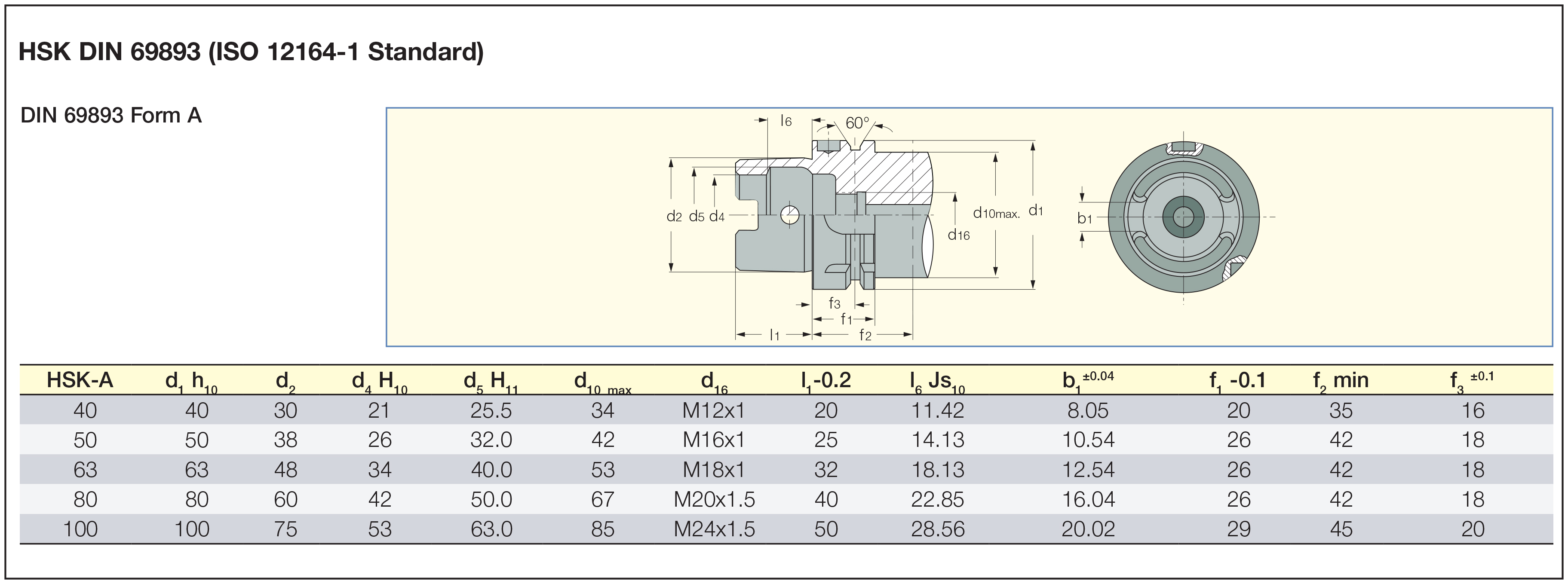

MB modular connection system with DIN 69893 HSK A taper shanks.
Price: Log in For Price

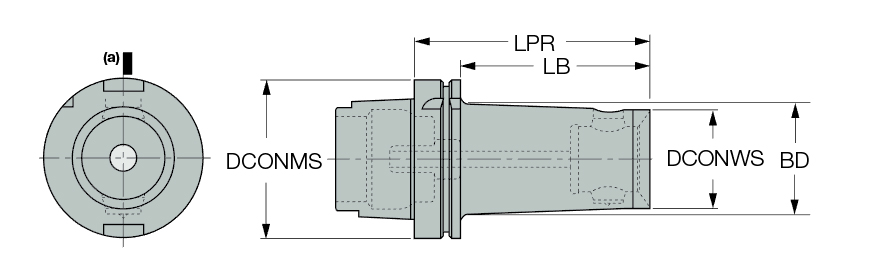

| Shank Size (SS) | 63 | Body Material | Steel |
| Protruding Length (LPR) | 4.724″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 1.9685″ | Connection Code Machine Side (CCMS) | HSK |
| Connection Size (CSI) | MB50 | Unit | I |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | MB modular connection system with DIN 69893 HSK A taper shanks. | COO | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Weight per item
4.1028
