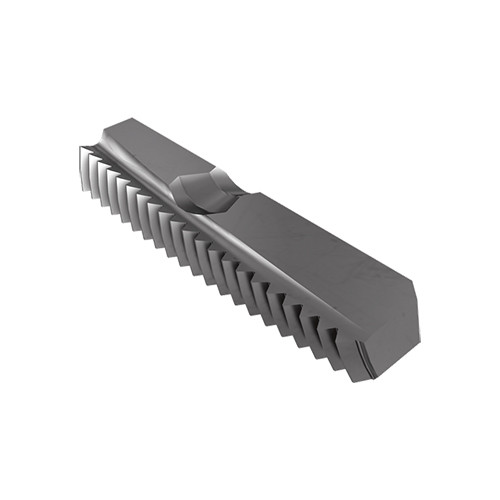

MTH 45 8 NPT IC908
External & internal NPT full profile thread milling inserts for steam, gas and water pipes.
Price: Log in For Price
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 3.175 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 8 /" | Tool Type | Threading Regular Inserts |

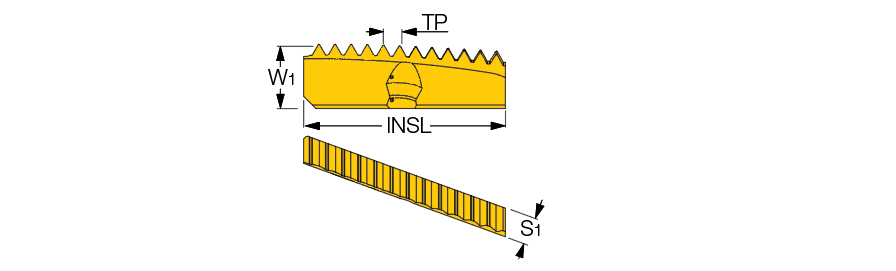

| Insert Length (INSL) | 1.457″ | Measurement Type | Inch |
| Insert Width (W1) | 0.469″ | Body Material | Carbide |
| Insert Thickness Total (S1) | 0.197″ | Thread Form Type (THFT) | NPT60 |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Grade | IC908 |
Product Features
| Family Description | External & internal NPT full profile thread milling inserts for steam, gas and water pipes. | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
