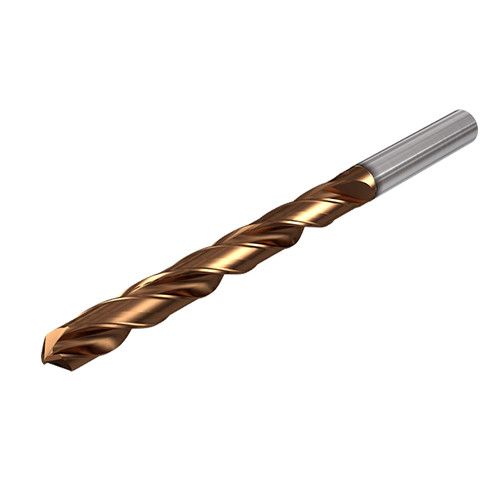

SCD 042-037-060 ACP8FL IC608
Solid carbide drills with coolant holes, drilling depth 8xD (available in North America only)
Price: Log in For Price

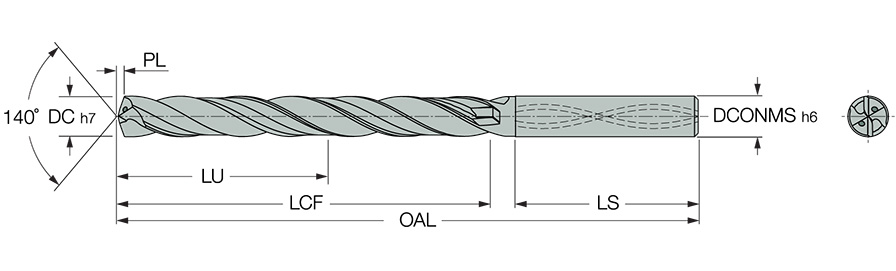

| Drill Bit Size / Cutting Diameter (DC) | 4.2 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.2 mm | Grade | IC608 |
| Coating | AlTiCrSiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 37 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 43 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 81 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 36 mm | Body Material | Carbide |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 8xD (available in North America only) | COO | USA |
| Remarks | Based on DIN 6537 standard |
