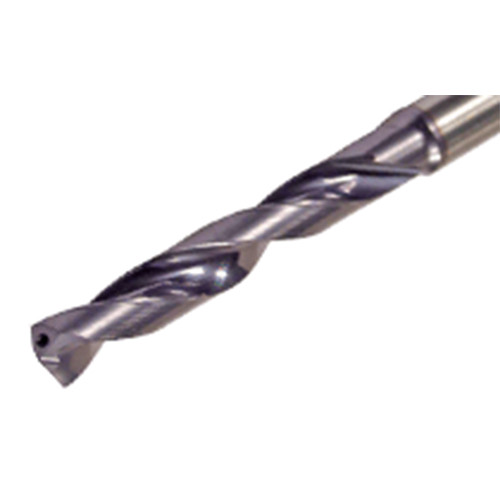

| Drill Bit Size / Cutting Diameter (DC) | 0.491″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.491″ | Grade | IC908 |
| Decimal Equivalent | 0.491″ | Measurement Type | Inch |
| Length Group | 5xD | Usable Length (LU) | 2.19″ |
| Coating | TiAlN | Length Chip Flute (LCF) | 2.76″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 4.65″ |
| Application | | Drilling | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.79″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 5xD. | ||
| COO | Korea |
Shipping Info
Weight per item
0.3373
