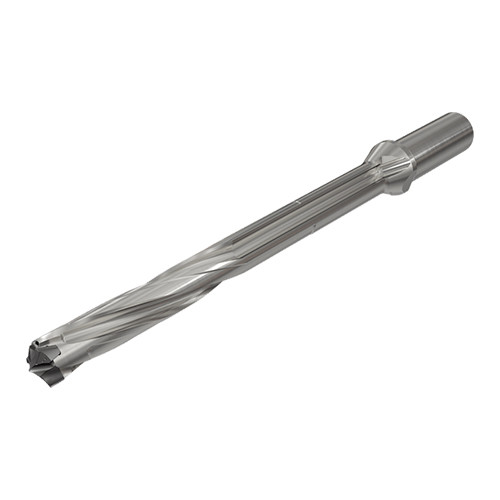

D3N 170-170-20R-10D
Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD
Price: Log in For Price

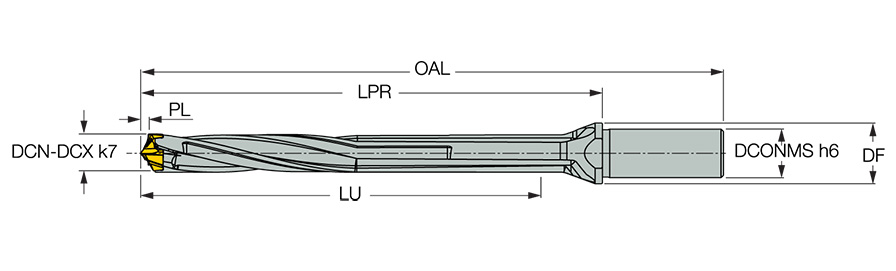

| Cutting Diameter (DC) | 17 mm | Overall Length (OAL) | 252.4 mm |
| Usable Length (LU) | 173.52 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | H3P 170-IQ |
| Insert Seat Size Code (SSC) | 17 | Point Length (PL) | 3.52 mm |
| Cutting Diameter Minimum (DCN) | 17 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 17.99 mm | Flange Diameter (DF) | 25 mm |
| Protruding Length (LPR) | 202.4 mm | Unit | M |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3480
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
