DCN 0335-067-MMT06-2D

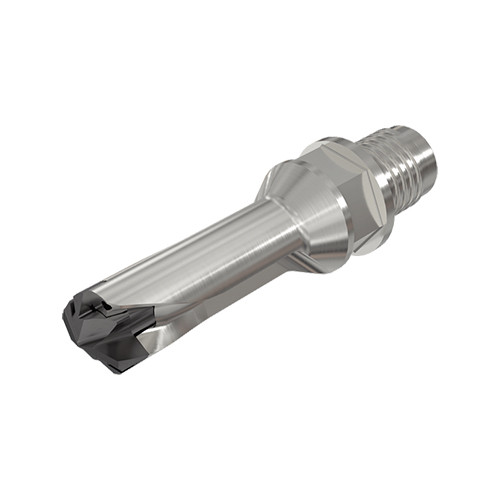

Modular SUMOCHAM drills are dedicated for Multi-Spindle and Swiss-Type machines with a MULTI-MASTER connection for easy adaptation and set up.
Price: Log in For Price

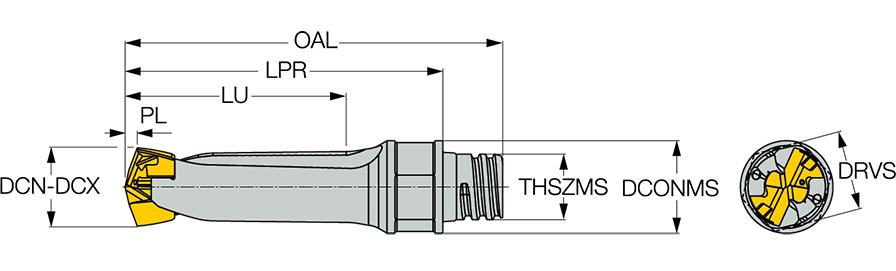

| Usable Length (LU) | 0.7201″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.378″ | Master Insert Identification (MIID) | ICP 0335 |
| Insert Seat Size Code (SSC) | 8.0 | Point Length (PL) | 0.05078″ |
| Cutting Diameter Minimum (DCN) | 0.335″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.354″ | Shank Diameter Tolerance (TCDMM) | $$$$ |
| Protruding Length (LPR) | 1.335″ | Unit | I |
| Overall Length (OAL) | 1.582″ |
Product Features
| Family Description | Modular SUMOCHAM drills are dedicated for Multi-Spindle and Swiss-Type machines with a MULTI-MASTER connection for easy adaptation and set up. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0705
