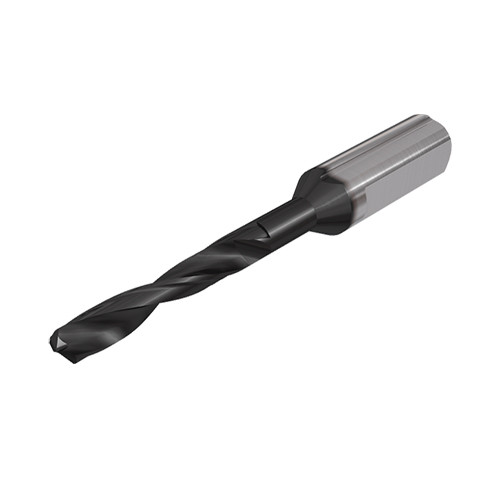

SCD 045-017-060 PICCO 3D IC908

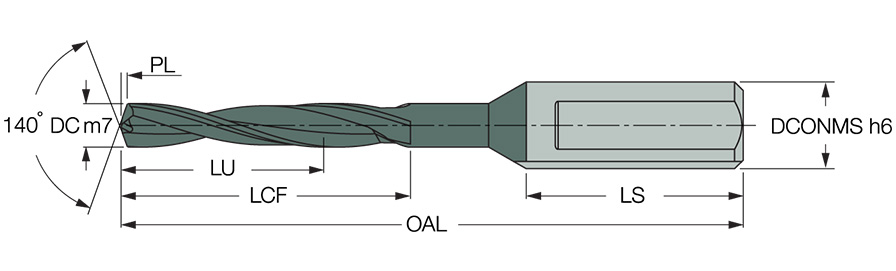

| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Tool Type | solid carbide Drills |
| Length Group | 3xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 17 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 46 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.7 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 15 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Weldon | Unit | M |
Product Features
| Family Description | Solid carbide drills for Swiss and small CNC machines. Part of the PASSPORT system | ||
| COO | Israel |
Shipping Info
Weight per item
0.0140
