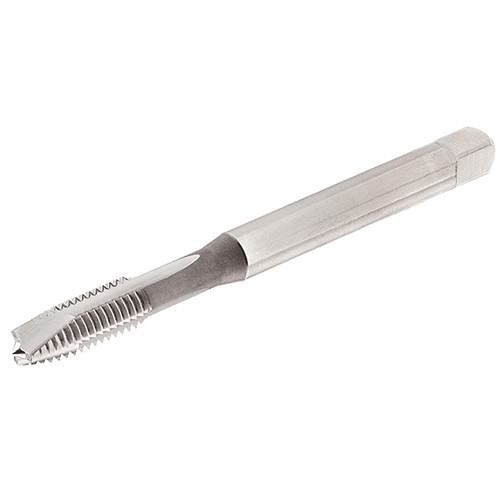

TPGN M-12X1.75-G HETA
DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Cast Iron
Price: Log in For Price

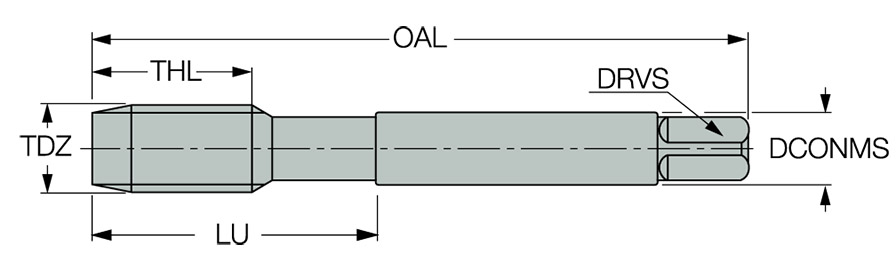

| Thread Size | M12 × 1.75 | Connection Diameter Machine Side (DCONMS) | 0.354″ |
| Thread Diameter Size (TDZ) | M12 | Thread Cutting Part Length (THL) | 0.866″ |
| Thread Pitch (TP) | 1.75 mm | Drive Size (DRVS) | 0.276″ |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Grade | HETA |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Unit | I |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Cast Iron | ||
| COO | Hungary |
Shipping Info
Weight per item
0.1389
