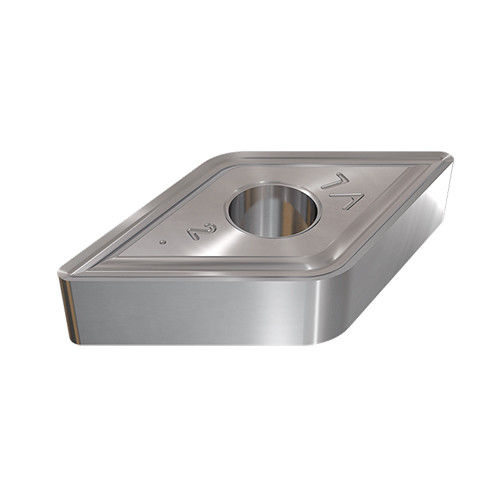

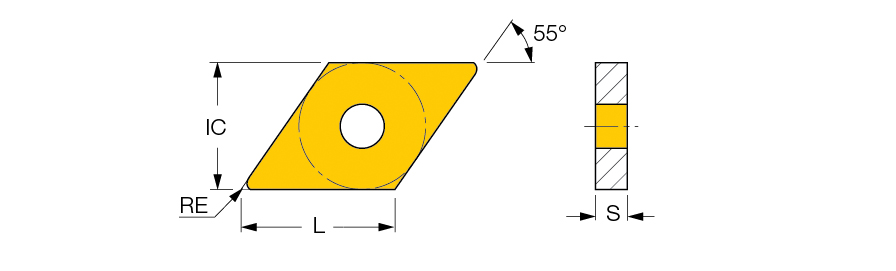

DNMG 332-VL IC1017
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55ֲ° Diamond 62.5ֲ° Approac | Ext. 55ֲ° Diamond 93ֲ° Approach | Int. 55ֲ° Diamond 93 95ֲ° Approac | | Min D.O.C. | 0.02″ |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 332 | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Cutting Edge Length (L) | 0.458″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | VL |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC1017 | Unit | I |
Product Features
| Family Description | The VL chipformer is used for high temperature alloys and stainless steel (originally designed for machining valves). Can be used for facing, longitudinal turning and profiling in roughing and finishing conditions. | FamilyName | DNMG-VL |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0172
Name
Turning Indexable Inserts
FamilyName
DNMG-VL
BrandName
Iscar
Harmonized code
8209000030
