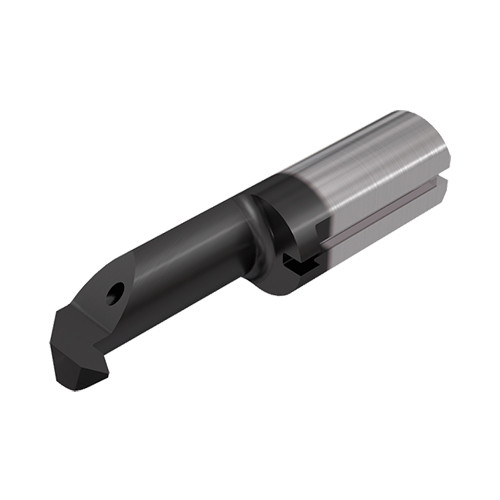

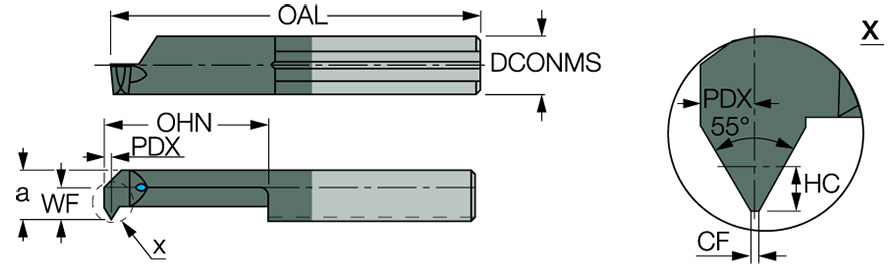

PICJ RTH14W24D060 IC908
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Central Flat (CF) | 0.005″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Body Material | Carbide |
| Functional Length (LF) | 1.181″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Tool Type | Solid Threading Tools |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Threads per Inch Maximum (TPIX) | 24 |
| Application | | Threading (Int.) | | Threads per Inch Minimum (TPIN) | 16 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.209″ | Thread Form Type (THFT) | VP55 |
| Functional Width (WF) | 0.091″ | Unit | I |
Product Features
| Family Description | Inserts with inner coolant channel for 55° internal threading profile | FamilyName | PICJ RTH (55° Threading) |
| Remarks | All mini-bars have sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0243
Name
Solid Boring Bars
FamilyName
PICJ RTH (55° Threading)
BrandName
Iscar
