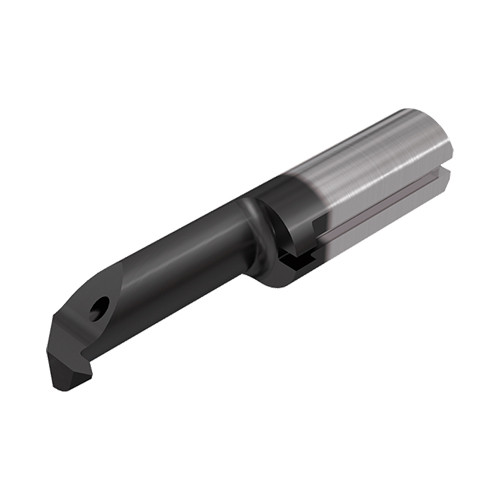

PICJ RTH21I1.00D060 IC908

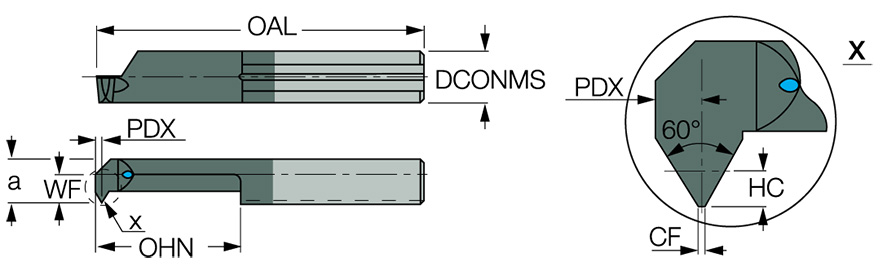

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Central Flat (CF) | 0.005″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Body Material | Carbide |
| Functional Length (LF) | 1.457″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Tool Type | Solid Threading Tools |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Thread Pitch (TP) | 1 mm |
| Application | | Threading (Int.) | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Front End Width (a) | 0.209″ | Unit | I |
| Functional Width (WF) | 0.091″ |
Product Features
| Family Description | Inserts with a 60° internal thread profile and inner coolant channel, for .094″ min. bore diameter. | FamilyName | PICJ R/LTH (60° Threading) |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0265
Name
Solid Boring Bars
FamilyName
PICJ R/LTH (60° Threading)
BrandName
Iscar
