SD S-A-L090-C16-CH-SP15

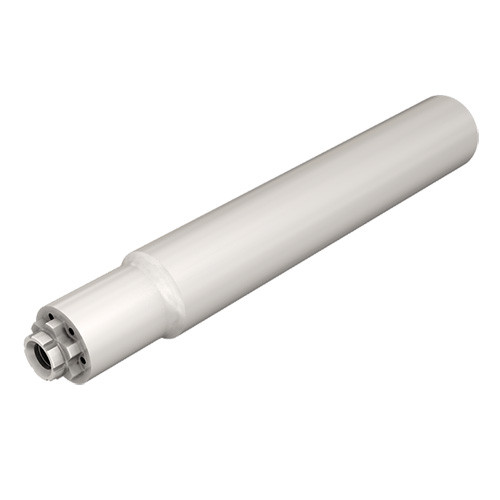

Stepped cylindrical shanks for interchangeable milling cutter heads.
Price: Log in For Price

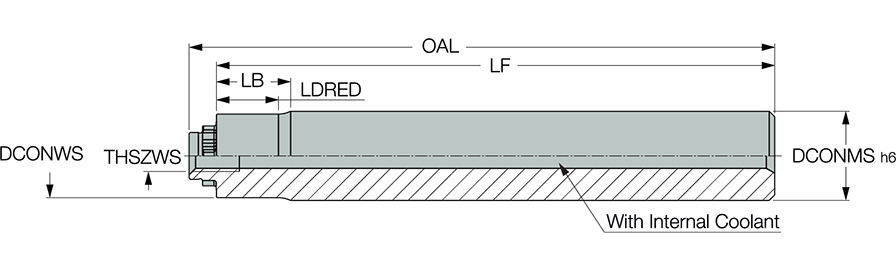

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Body Length (LB) | 0.63″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.701″ | Body Material | Steel |
| Body Length Maximum (LBX) | 0.72″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks | Unit | I |
| Body Diameter (BD) | 0.591″ |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable milling cutter heads. | FamilyName | SD S-A-C-SP |
| Remarks | Apply lubricant to the clamping screw | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4806
Name
Solid End Mill Shanks
FamilyName
SD S-A-C-SP
BrandName
Iscar
