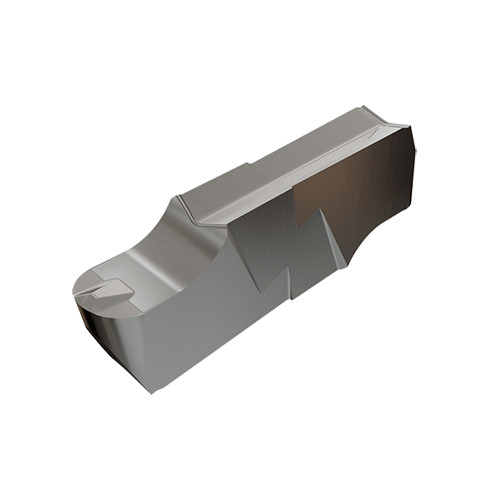

GIPI 2.00-1.00 IC808

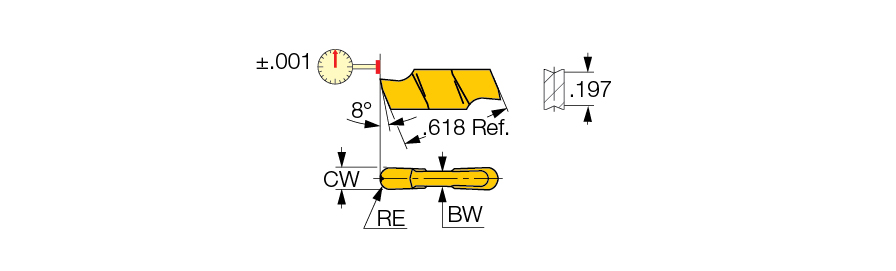

| Cutting Width (CW) | 0.079″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.039″ | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Clearance Angle Major (AN) | 8 Degrees | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | I |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787″. | FamilyName | GIPI (full radius) |
| Remarks | Dmin for internal application= .787 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0097
Name
Groove/Turn Indexable Inserts
FamilyName
GIPI (full radius)
BrandName
Iscar
LocalField3
8209000030
